IGTP-802T
IP30 Industrial 10/100/1000BASE-T to 100/1000BASE-SX Converter with 802.3at PoE+ (Multi-mode, 220m/550m, -40 to 75C, 12V~48V DC power boost)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
IGTP-802T
1000BASE-SX to 10/100/1000BASE-T 802.3at PoE+ (SC,MM) -550m
Distribuzione PoE flessibile ed intuitiva con estensione in fibra SFP Gigabit
Per quei luoghi in cui è difficile trovare una presa di corrente, la serie IGTP-80xT fornisce la maniera più semplice per alimentare apparecchiature di rete come telecamere IP PTZ, telecamere IP speed dome, telefoni VoIP con touch-screen a colori, Access Point LAN wireless multicanale (IEEE 802.11a/b/g/n/ac) e altri dispositivi di rete che richiedono una potenza maggiore per funzionare regolarmente. Ad esempio, gli utenti possono installare, in modo flessibile, telecamere IP di sicurezza, access point wireless e altre apparecchiature di rete conformi allo standard IEEE 802.3at /IEEE 802.3af, in aree pubbliche come stazioni, autostrade, aeroporti e campus per esigenze di sorveglianza e di roaming wireless.

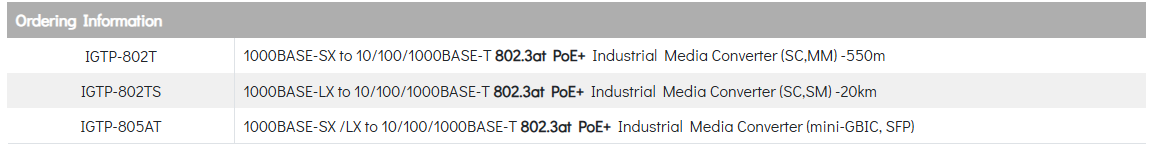

| Ethernet Interface | |
|---|---|
| Copper | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance. Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| 1000BASE-X Fiber-optic Connector Type | IGTP-802T: SC IGTP-802TS: SC IGTP-805AT: SFP (LC) |
| Fiber Cable | IGTP-802T Multi-mode: 50/125μm or 62.5/125μm optic fiberIGTP-802TS Single-mode: 9/125μm optic fiber IGTP-805AT |
| Fiber Cable Distance | IGTP-802T: 220m & 550m IGTP-802TS: 10km IGTP-805AT: Varying on SFP Module |
| Fiber Optical Frequency | IGTP-802T: 850nm IGTP-802TS: 1310nm IGTP-805AT: Varying on SFP Module |
| Launch Power | IGTP-802T Max. -4dBm Min. -9.5dBmIGTP-802TS Max. -3dBm Min. -9.5dBm IGTP-805AT |
| Receive Sensitivity | IGTP-802T: -13.5dBm IGTP-802TS: -14.4dBm IGTP-805AT: Varying on SFP Module |
| Maximum Input Power | IGTP-802T: -18dBm IGTP-802TS: -20dBm IGTP-805AT: Varying on SFP Module |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Output | 52V DC: 15.4 watts 52V DC: 30 watts |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 30 watts |
| Hardware Specifications | |
| Speed | Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 1000/2000Mbps for full duplexFiber Optic: 200Mbps / 2000Mbps for full duplex |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: Power 1, Power 2 and Fault LED (Green) Fiber 1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT, 1000 (Green) PoE: Power-in-use (Orange) |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | IGTP-802T: 510g IGTP-802TS: 510g IGTP-805AT: 500g |
| Unit Input Voltage | 12 ~ 48V DC 24V AC |
| Power Consumption | 24V: 4.3watts/14BTU, 48V: 4.8watts/16BTU (without PoE) 24V: 33watts/112BTU, 48V: 31watts/105BTU (with PoE) |
| Link Fault Passthrough DIP Switch | ON/OFF |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters)100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
