WGS-5225-8P2SV
IP30, IPv6/IPv4, L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch with LCD touch screen (-20~70 degrees C, dual power input on 48-56VDC terminal block and power jack, ERPS Ring, 1588, Modbus TCP, ONVIF, SNMPv3, 802.1Q VLAN, IGMP Snooping, SSL, SSH, ACL)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Security Building Automation Switch
Adatto per gli edifici in cui la sicurezza deve essere applicata in maniera rigorosa, WGS-5225-8P2SV offre una lista di controllo degli accessi (ACL) completa livello 2 a livello 4. Lo switch è in grado di limitare l’accesso alla rete rifiutando i pacchetti in base all’indirizzo IP di origine e di destinazione, alle porte TCP/UDP o a specifiche applicazioni di rete. Con questo modello di switch è possibile realizzare con facilità una rete strettamente controllata in pochissimo tempo.
Gestione di diverse reti da un unico centro di controllo
Dotato di 8 PoE +, WGS-5225-8P2SV è in grado di gestire centralmente l’alimentazione a un sistema di rete industriale in cui sono installati telefoni IP, telecamere IP, Access Point wireless e altro ancora. Ad esempio, 8 telecamere IP PoE o AP wireless possono essere installati facilmente in ambiente industriale per esigenze di sorveglianza o per una rete di roaming wireless. Superando la limitazione della presa di corrente, WGS-5225-8P2SV rende l’installazione di telecamere IP e AP wireless più semplice ed efficiente. I due slot mini-GBIC integrati suppo
Ring ridondante e Recupero veloce per applicazioni di rete critiche
WGS-5225-8P2SV supporta la tecnologia ad anello ridondante e dispone di una forte e rapida capacità di auto-recupero per prevenire interruzioni del servizio e intrusioni esterne. Incorpora la tecnologia avanzata ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), il protocollo Spanning Tree (802.1s MSTP) e il sistema di doppio ingresso di alimentazione, nella rete di automazione industriale del cliente per migliorare l’affidabilità del sistema e il tempo di attività in ambienti industriali difficili. In una determinata rete ad anello semplice, il tempo di recupero del collegamento dati può arrivare a 10ms.
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 to Port-10) Compatible with 100BASE-FX SFP |
| PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Throughput (packet per second) | 14.88Mpps@ 64 bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount |
| Connector | Removable 3-pin terminal block for power input – Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) – Pin 3 for earth ground DC power jack with 2.0mm central pole |
| LED Indicator |
System: PWR(Green) Ring (Green) Ring Owner (Green) Per 10/100/1000T RJ45 PoE+ Ports: PoE-in-Use (Orange) LNK/ACT (Green) Per SFP Interface: 100 LNK/ACT (Orange) 1000 LNK/ACT (Green) |

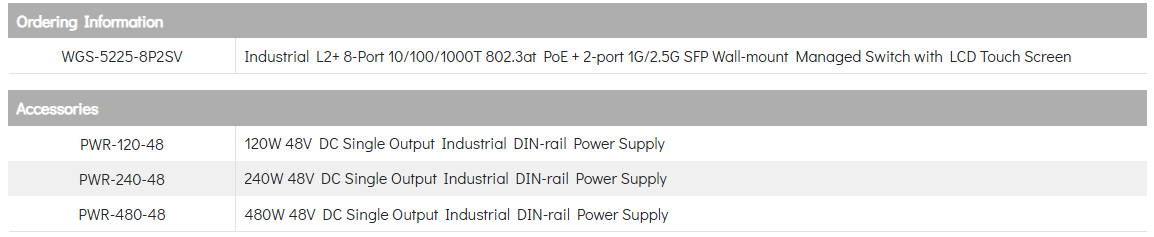

| Dimensions (W x D x H) | 180 x 24.4 x 140 mm |
| Weight | 686g |
| Power Requirements | Dual 48~56V DC (>51V DC for PoE+ output recommended) |
| Power Consumption | Max. 7.2 watts/24.7BTU (Power on without any connection) Max. 251 watts/861.2BTU (Full loading with PoE function) |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 51V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 240W maximum (depending on power input) |
| Max. number of Class 2 PDs | 8 |
| Max. number of Class 3 PDs | 8 |
| Max. number of Class 4 PDs | 8 |
| Layer 2 Function | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/both 1 to 1 monitor |
| VLAN | 802.1Q tag-based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 2 trunk groups with 2 ports per trunk group |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
| SNMP MIBs | RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Layer 3 Function | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus ITU-T G.8032 Ethernet Ring Protection Switching RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Environment | |
| Operating Temperature | -20 ~ 70 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
