SGS-6341-24P4X
Layer 3, 24-Port 10/100/1000T 802.3at POE With 4 Port Shared 100/1000X SFP+ 4-Port 10G SFP + USB 2.0 Port+RJ45 Type consol+ 1-Port Ethernet MGMT + Stackable Managed Gigabit Switch (370W), Multicast Ruting PIM-DM/SM, DVM RP.
- Applicazioni
- SPECIFICHE
- Download
Descrizione
Potente routing Gigabit Layer 3 per soluzioni di livello enterprise
Lo switch Gigabit gestito impilabile Layer 3 PoE PLANET SGS-6341-24P4X offre prestazioni ad alta densità, routing statico Layer 3, RIP (Routing Information Protocol) e OSPF (Open Shortest Path First). Con una struttura di switching a 128 Gbps, l’SGS-6341-24P4X è in grado di gestire grandi quantità di dati in una topologia sicura, collegandosi a una dorsale aziendale o a server ad alta capacità. Le potenti funzionalità WRR (Weighted Round Robin) e Network Security consentono all’SGS-6341-24P4X di eseguire un efficace controllo del traffico dati per applicazioni ISP e VoIP aziendali, streaming video e multicast. L’SGS-6341-24P4X dispone di 24 porte PoE+ IEEE 802.3at e un budget PoE fino a 370 watt per soddisfare le esigenze di reti VoIP o di sorveglianza IP di medie e grandi dimensioni a un costo competitivo.
Gestione centralizzata dell’alimentazione per reti PoE Gigabit Ethernet
Per soddisfare le esigenze di applicazioni di rete PoE ad alta potenza con trasmissione a velocità Gigabit, l’SGS-6341-24P4X offre PoE Gigabit IEEE 802.3af ad alte prestazioni (fino a 15,4 watt) e PoE+ IEEE 802.3at (fino a 30 watt) su tutte le porte. Soddisfa perfettamente i requisiti di alimentazione dei telefoni VoIP PoE e di tutti i tipi di telecamere IP PoE, come telecamere IR, PTZ, speed dome o persino telecamere IP box con ventola e riscaldatore integrati.
Le funzionalità PoE dell’SGS-6341-24P4X contribuiscono inoltre a ridurre i costi di implementazione dei dispositivi di rete, liberandoli dalle limitazioni legate alla posizione delle prese di corrente. La commutazione di alimentazione e dati è integrata in un’unica unità, distribuita tramite un singolo cavo e gestita centralmente. In questo modo si eliminano i costi per il cablaggio CA aggiuntivo e si riducono i tempi di installazione.
Soluzione di rete mesh ad alta disponibilità per sistemi Big Data
Grazie al miglioramento della tecnologia Ethernet in fibra ottica con funzionalità altamente flessibili, estensibili e facili da installare, SGS-6341-24P4X offre una velocità di scambio dati fino a 128 Gbps tramite interfaccia in fibra ottica, con una distanza di trasmissione che può essere estesa fino a 120 km. SGS-6341-24P4X offre una capacità di autoripristino rapida ed efficiente per prevenire interruzioni e intrusioni esterne. Integra il protocollo IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree tramite VLAN) nella rete di automazione del cliente per migliorare l’affidabilità e l’uptime del sistema. SGS-6341-24P4X è la soluzione ideale per data center, service provider e aziende di telecomunicazioni per creare connessioni ridondanti e stabilire un’elevata larghezza di banda per la server farm Big Data.
Ottima soluzione per la sicurezza del core/data center e lo switch QoS
SGS-6341-24P4X offre una struttura switch non bloccante a 128 Gigabit al secondo, consentendo di fornire facilmente una rete Ethernet locale ad alta larghezza di banda da 10 Gbps per la dorsale del vostro reparto. Grazie alle quattro porte SFP+ integrate, SGS-6341-24P4X fornisce l’uplink alla rete dorsale tramite i moduli SFP+ LR/SR Ethernet 10G. Migliora ulteriormente l’efficienza della rete e protegge i client di rete offrendo funzionalità di sicurezza e QoS.
Hardware Specifications | |
---|---|
Hardware Version | 2 |

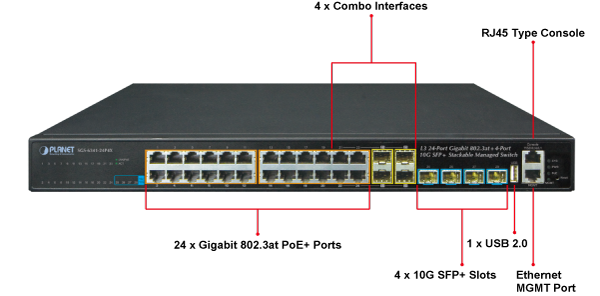

Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 4 100/1000BASE-X SFP combo interfaces with Port-21 to Port-24 Supports 100/1000Mbps dual mode and DDM |
SFP+ Slots | 4 10GBASE-SR/LR SFP+ interface (port-25 to port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
Switch Architecture | Store-and-forward |
Switch Fabric | 128Gbps/non-blocking |
Switch Throughput | 95.23Mpps |
Address Table | 16K MAC address table with auto learning function |
Shared Data Buffer | 1.5MB |
Flow Control | Back pressure for half -duplex IEEE 802.3x pause frame for full -duplex |
Jumbo Frame | 10KB |
LED | System: PWR/MGMT/SYS/PoE Ports: 10/100/1000T RJ45 Port: LNK/ACT and PoE-in-Use 1/10G SFP+ slot: LNK/ACT |
Dimensions (W x D x H) | 440 x 320 x 43.6 mm, 1U height |
Weight | 4503g |
Power Consumption | 15.4 watts/52.51 BTU (System) 401.7 watts/ 1369.8 BTU (System+PoE) |
Power Requirements | AC 100~240V, 50/60Hz |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 53V DC, 30.8 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 370 watts (max.) |
PoE Ability PD @ 9 watts | 24 units |
PoE Ability PD @ 15 watts | 24 units |
PoE Ability PD @ 30 watts | 12 units |
Management Function | |
System Configuration | Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3 |
Management | Supports both IPv4 and IPv6 addressing Supports the user IP security inspection for IPv4/IPv6 SNMP Supports MIB and TRAP Supports IPv4/IPv6 FTP/TFTP Supports IPv4/IPv6 NTP Supports RMON 1, 2, 3, 9 four groups Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password Supports IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management Supports CLI, console, Telnet Supports SNMP v1, v2c and v3 Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area Supports Syslog server for IPv4 and IPv6 Supports TACACS+ |
Layer 3 Function | |
Routing Protocol | Static routing, RIP, OSPF, BGP and PBR |
Routing Table | Total 1K entries (IPv4/IPv6 shared) |
Layer 2 Function | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
VLAN | 802.1Q tagged based VLAN, up to 256 VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
Bandwidth Control | TX/RX/Both |
Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 12 groups with 8 ports per trunk group |
QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: – IEEE 802.1p CoS/ToS – IPv4/IPv6 DSCP – Port-based WRR |
Multicast | IGMP v1/v2/v3 snooping Querier mode support MLD v1/v2 snooping Multicast VLAN Register (MVR) |
Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 512 entries |
Bandwidth Control | At least 64Kbps step |
Security | Supports MAC + port binding IPv4/IPv6 + MAC + port binding IPv4/IPv6 + port binding Supports MAC filter ARP scanning prevention |
Authentication | IEEE 802.1x port-based network access control AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
Standard Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
