LRP-101U-KIT
1-Port Long Reach POE over UTP Extender Kit (LRP-101UH+LRP-101UE), -20 to 70 Degree C, up to 500 meter
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Pratico extender PoE su UTP in ambienti difficili
LRP-101U-KIT, una soluzione PoE a lunga portata PLANET, è un kit extender PoE su UTP a porta singola con trasmissione dati e alimentazione a lungo raggio fino a 500 m (1.640 piedi) su cavo UTP/STP e altri 100 m su cavo Ethernet per telecamere IP PoE remote, AP wireless PoE o sistemi di controllo accessi conformi allo standard PoE 802.3af/at. LRP-101U-KIT offre un’applicazione punto-punto per un facile funzionamento plug-n-play e l’implementazione in ambienti climaticamente difficili con un ampio intervallo di temperatura da -20 a 70 °C. Senza il problema della fonte di alimentazione, semplifica ed efficiente l’installazione di dispositivi PoE remoti.
La soluzione PLANET Long Reach PoE è progettata per estendere la trasmissione Ethernet IP e iniettare simultaneamente energia in un dispositivo remoto (PD) alimentato conforme allo standard PoE 802.3af/at oltre il limite di distanza di 100 metri di Ethernet.
Composizione del kit di estensione PoE su UTP a lunga portata
Il kit LRP-101U-KIT include due prodotti: l’LRP-101UH, un iniettore PoE UTP a lunga portata (iniettore LRP), e l’LRP-101UE, un extender PoE UTP a lunga portata (extender LRP). Utilizzandolo in coppia, l’LRP-101UH può essere alimentato da un adattatore CC esterno o da uno switch Ethernet PoE+, e da lì, l’uscita PoE standard 802.3at dell’LRP-101UE viene inviata ai dispositivi alimentati PoE (PD). Il kit LRP-101U-KIT può essere ampiamente utilizzato nei sistemi di trasporto intelligenti (ITS), nella sorveglianza del traffico, nel monitoraggio della sicurezza, nel controllo dell’automazione, nei quartieri residenziali intelligenti e così via.
Il kit LRP-101U-KIT può funzionare in due diverse combinazioni:

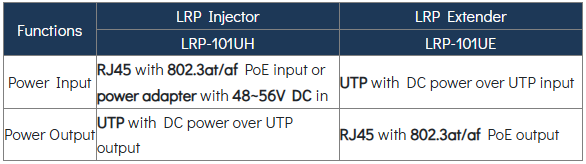

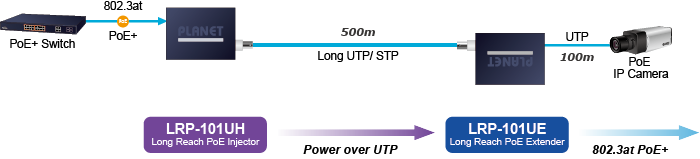

- Tipo 1: LRP-101UH con ingresso di alimentazione PoE e LRP-101UE con uscita di alimentazione PoE
L’iniettore LRP-101UH è alimentato da una sorgente PoE IEEE 802.3at/af e trasmette dati e alimentazione tramite cavo UTP all’extender LRP-101UE. Un PD PoE conforme allo standard IEEE 802.3at/af verrà quindi alimentato automaticamente dall’LRP-101UE tramite cablaggio UTP.

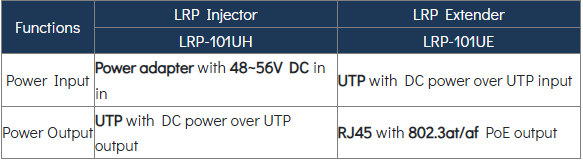

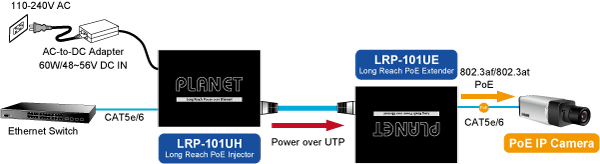

- Tipo 2: LRP-101UH con ingresso di alimentazione 48~56 V CC e LRP-101UE con uscita di alimentazione PoE
L’iniettore LRP-101UH è alimentato tramite l’adattatore di alimentazione CC e trasmette dati e alimentazione tramite cavo UTP all’extender LRP-101UE. Un PD PoE conforme allo standard IEEE 802.3at/af verrà quindi alimentato automaticamente dall’LRP-101UE tramite cavo UTP.
Installazione Plug-n-play
Grazie alla funzionalità Plug-n-play, il kit di estensione PoE a lunga portata PLANET può essere utilizzato immediatamente senza necessità di configurazione ed è compatibile con tutti i tipi di protocolli di rete IP. Inoltre, i LED diagnostici sul pannello frontale mostrano lo stato operativo della singola porta e dell’intero sistema, consentendo all’amministratore di gestire la rete in modo efficiente.
Hardware Specifications | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ethernet Interface | LRP-101UH ■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X ■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device) ■ PoE Input: Supports both mid-span and end-span PSE Input Range: 48~56V DC ■ Data Rate: 100/100Mbps ■ Cabling: Cat5e or above ■ Maximum Distance: 100m ■ Maximum Frame Size: 1522 bytesLRP-101UE ■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X ■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment) ■ PoE Output: 48~56V DC, 600mA max. ■ PoE Budget: Up to 25 watts ■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-) ■ Data Rate: 100/100Mbps ■ Cabling: Cat5e or above ■ Maximum Distance: 100m ■ Maximum Frame Size: 1522 bytes |
||||||||||||||||||||||||||
Long Reach PoE Interface | LRP-101UH ■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PSE ■ Power Output: 41~56V DC ■ Power Pin assignment: RJ45 Pin 1, 3, 5, 7: VCC+ RJ45 Pin 2, 4, 6, 8: VCC- ■ Cabling: Cat. 3, 4, 5, 5e UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) ■ Maximum Distance: Max. 100m with PoE+ output (328ft.) Max. 500m with PoE output (1,640ft.) Max. 1000m without PoE output (3,280ft.) ■ Long Reach Ethernet Standard: IEEE 1901 ■ Modulation Type: Wavelet-OFDM ■ Security: 128-bit AES encryption ■ Frequency Band: 2 ~ 28 MHz ■ Encryption: AES 128-bitLRP-101UE ■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PD ■ Power Input: 37~56V DC* ■ Power Pin assignment: RJ45 Pin 1, 3, 5, 7: VCC+ RJ45 Pin 2, 4, 6, 8: VCC- ■ Maximum Distance: Max. 100m with PoE+ output (328ft.) Max. 500m with PoE output (1,640ft.) Max. 1000m without PoE output (3,280ft.) ■ Long Reach Ethernet Standard: IEEE 1901 ■ Modulation Type: Wavelet-OFDM ■ Security: 128-bit AES encryption ■ Frequency Band: 2 ~ 28 MHz ■ Encryption: AES 128-bitPerformance**
|
||||||||||||||||||||||||||
LED Indicators | LRP-101UH 4 x LEDs ■ PWR ■ LRP LNK ■ PoE IN ■ LNK/ACTLRP-101UE 4 x LEDs ■ PWR ■ LRP LNK ■ PoE-in-use ■ LNK/ACT |
||||||||||||||||||||||||||
ESD Protection | 4KV DC | ||||||||||||||||||||||||||
EFT Protection | LRP-101UH ■ 2KVLRP-101UE ■ – |
||||||||||||||||||||||||||
Enclosure | Metal case | ||||||||||||||||||||||||||
Installation | Wall mount or DIN rail with optional kit | ||||||||||||||||||||||||||
Dimensions (W x D x H) | 94 x 70 x 26 mm | ||||||||||||||||||||||||||
Weight | LRP-101UH 193gLRP-101UE 190g |
||||||||||||||||||||||||||
Power Requirements | LRP-101UH ■ RJ45 PoE Input: 802.3at/af 48~56V DC ■ DC Input: 48~56V DCLRP-101UE ■ Power over RJ45 Input: 44~56V DC |
||||||||||||||||||||||||||
Standards Conformance | |||||||||||||||||||||||||||
Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2) |
||||||||||||||||||||||||||
Regulation Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||
Temperature | Operating: -20~70 degrees C Storage: -40~75 degrees C |
||||||||||||||||||||||||||
Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||||||||||||||||||||
Note | |||||||||||||||||||||||||||
Note | *1.Upload: LRP-101UE to LRP-101UH,data stream. Download: LRP-101UH to LRP-101UE,data stream. 2.As there are various resistance values in the category of 5/5e cable, the actual data rate will vary on the quality of the copper wire and environment factors. **Depending on what the DC/PoE Power Input and the length of UTP cable are. |
