LRP-101CE

1-Port 10/100TX POE PSE + 1-Port Coax Long Reach POE Extender, -20 to 70 Degree C

Descrizione

Working Hand in Hand as a Kit
Working in pair with PLANET LRP-101CH Long Reach PoE Injector, powered by either the external DC power adapter or PoE+ Ethernet switch, the LRP-101CE’s 802.3at standard PoE output goes to a PoE PD. The LRP-101-C-KIT, made up of the LRP-101CH and LRP-101CE, can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101C-KIT can function in two different kinds of combinations:

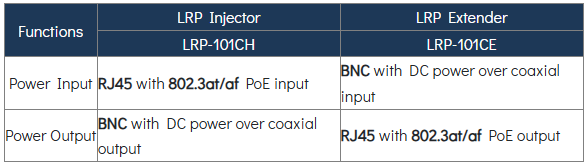

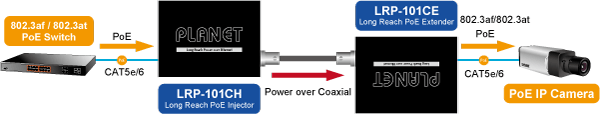

Type 1: LRP-101CH with PoE power input and LRP-101CE with PoE power output
The LRP-101CH injector, powered by IEEE 802.3at/af PoE source, transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.

LRP 101C KIT LRP 101U KIT 2 L 1

Cattura 9

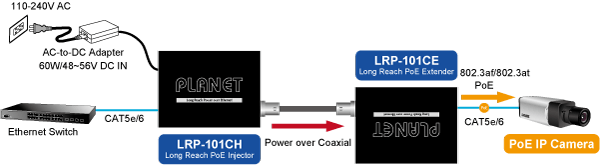

Type 2: LRP-101CH with 48~56V DC power input and LRP-101CE with PoE power output
The LRP-101CH injector, powered via the DC power adapter, transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.

LRP 101C KIT LRP 101U KIT 1 L

Cattura 10



Type 3: Multi-channel Long Reach PoE Switch Topology

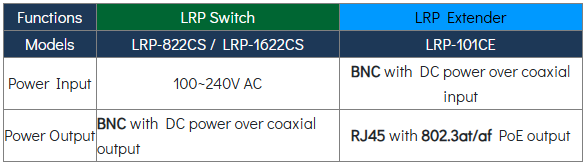

LRP switch with 100~240V AC power input and multiple LRP-101CEs with PoE power output
Powered by the Long Reach PoE Switch via coaxial cables, the LRP-101CE can automatically deliver power and data to the IEEE 802.3at/af compliant PoE PDs via UTP. It successfully eliminates the need for an additional power source for the LRP-101CE and the PoE PDs at long range.

LRP 101C KIT LRP 101U KIT 10 L

Cattura 11

Hardware Specifications
Ethernet Interface ■ Copper:
• 10/100BASE-TX RJ45
• auto-negotiation/ auto-MDI/MDI-X

■ Power over Ethernet Standard:
IEEE 802.3at/af PoE PSE (Power Source Equipment)

■ PoE Output: 56V DC, 600mA max.

■ PoE Budget: Up to 25 watts

■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)

■ Data Rate: 100/100Mbps

■ Cabling: Cat5e or above

■ Maximum Distance: 100 meters

■ Maximum Frame Size: 1522bytes

Long Reach PoE Interface ■ Connectivity:
• 1 x BNC female
• Long Reach PoE over coaxial PD (Powered Device)

■ Power Input: 37~56V DC*

■ Power Pin Assignment:
• BNC center pole : DC+ / Hi
• BNC shield : DC – / Lo

■ Cabling:
• Coaxial cable: 75 ohm
• RG-6/U cable, less than 12Ω/1,000ft.
• RG-59/U cable, less than 30Ω/1,000ft.

■ Maximum Distance:
• Max. 200m with PoE+ output (656ft.)
• Max. 600m with PoE output (1,968ft.)
• Max. 1,200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard: IEEE 1901

■ Modulation Type: Wavelet-OFDM

■ Security: 128-bit AES encryption

■ Frequency Band: 2 ~ 28 MHz

■ Encryption: AES 128-bit

■ Performance**

Distance
Data Rate*
(Upload / Download)
LRP-101CE 802.3af/at PoE Output Capability**
LRP-101CH
with 56V DC in
LRP-101CH
with 30W PoE+ in
200m
93 / 93Mbps
29W
16W
400m
93 / 93Mbps
22W
14W
600m
87 / 91Mbps
13W
10W
800m
75 / 83Mbps
10W
8W
1000m
55 / 73Mbps
8W
7W

■ Multiple Nodes: Supports up to 4 LRP extenders within 1km

■ LRP Compatibility:
With power over coaxial input
• LRP-101CH – 1-Port LRP Injector
• LRP-822CS – 8-Port LRP over Coax Switch
• LRP-1622CS – 16-Port LRP over Coax Switch

LED Indicators 4 x LEDs
■ PWR
■ LRP LNK
■ PoE-in-use
■ LNK/ACT
ESD Protection 4KV DC
Enclosure Metal case
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 94 x 70 x 26 mm
Weight 375g
Power Requirements BNC Power over Coaxial Input: 44~56V DC
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet Plus(802.3at Type 2)
Regulation Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -20~70 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
