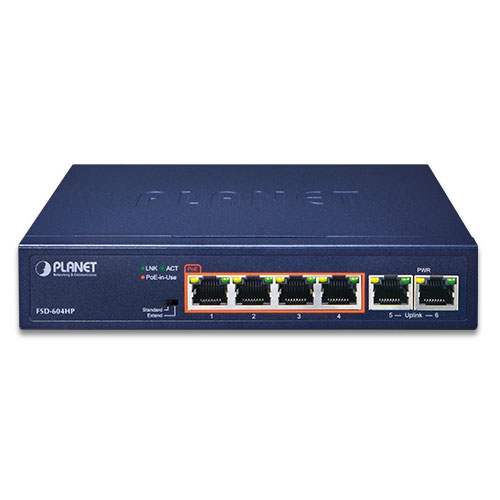

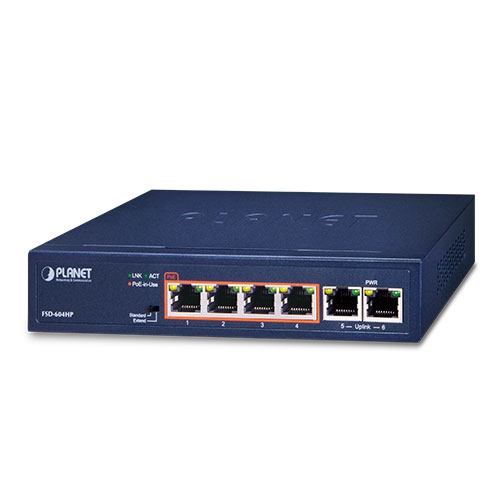

FSD-604HP
4-Port 10/100TX 802.3at POE + 2-Port 10/100TX Desktop Switch (60W POE Budget, 250m Extend mode, fanless, internal Power Supply)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
SOHO and Home-use Fast Ethernet PoE Network Deployment
With its expanded home-use feature, the FSD-604HP 802.3at/af PoE Switch helps SOHO and home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera and PoE door phone devices work perfectly with the FSD-604HP, which injects power through the Ethernet cables, thus helping SOHO and home users to build a cost-effective and reliable PoE network environment easily.
Perfectly-integrated Solution for PoE IP Camera and NVR System
The FSD-604HP provides four 802.3at/af PoE ports for catering to small-scale home and SOHO IP surveillance networks at a lower total cost. The FSD-604HP comes with a high-performance switch architecture and 60-watt PoE power budget. The recorded video files from the 4 PoE IP cameras powered by the FSD-604HP are saved in the 4-channel NVR system. Besides, surveillance software can be used to perform comprehensive security monitoring.
For instance, one FSD-604HP can be combined with one 4-channel NVR; that is, each of its PoE port can be linked to a specific 802.3af PoE IP camera for the administrators to centrally and efficiently manage the surveillance system in one site. The FSD-604HP’s Fast Ethernet TP interface also provides Fast Ethernet TP connection for uplink to NVR systems or public server groups.
IP Office Department/Workgroup PoE Switch
With the business office expansion, the additional telephones required can be installed with less costs via the implementation of PoE IP telephony system than that of the traditional circuit wiring telephony system. The FSD-604HP 802.3at/af PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without an additional power cable because the power can be provided via the standard Ethernet cable from the connected FSD-604HP.
The wireless AP group, PoE IP phones and analog telephony adapter work perfectly with the FSD-604HP, which injects power through the Ethernet cables. With the FSD-604HP, IP telephony deployment becomes more reliable and cost-effective, thus helping enterprises save tremendous costs when upgrading from the traditional telephony system to IP telephony communications infrastructure.
| Hardware Specifications | |
|---|---|
| Network Connector | 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX |
| PoE Inject Port | 4-port with 802.3af/at PoE injector function (Port-1 to Port-4) |
| LED Display | System: Power (Orange)Per PoE port: PoE (Orange, Port 1 to Port 4) LNK/ACT (Green, Port 1 to Port 6) |
| DIP Switch | 100m distance in standard mode 250m distance in extend mode (based on the cable category) |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Switch Fabric | 1.2Gbps |
| Switch Throughput | 0.89Mpps @64bytes |
| Maximum Packet Size | 1536bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |

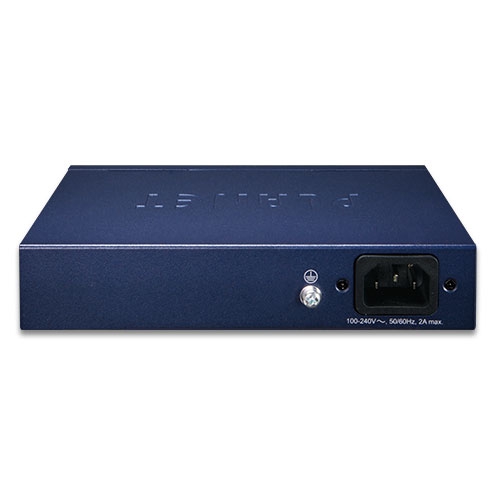

| Power Requirements | AC 100~240V, 2A max. |
| Power Consumption | Max. 63 watts, 214 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32 mm |
| Weight | 499g |
| ESD Protection | Contact discharge of ±4KV DC Air discharge of ±6KV DC |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 60 watts |
| Number of PDs, 7 watts | 4 |
| Number of PDs, 15.4 watts | 4 |
| Number of PDs, 30 watts | 2 |
| Standard Conformance | |
| EMI Safety | CE, FCC |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
