Descrizione

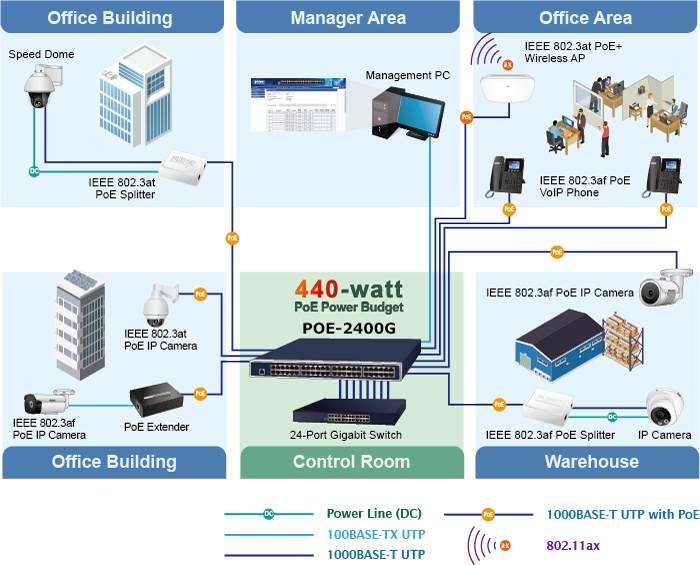

Gigabit PoE Network Deployment
The POE-2400G provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 24 10/100/1000BASE-T Gigabit Ethernet ports, the POE-2400G supports full 52V DC power for any remote IEEE 802.3af/802.3at powered device (PD).
To control the power system of your networking devices, the POE-2400G can directly co-work with PoE IP phone to build VoIP telephony network in the office. Furthermore, the POE-2400G can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed within 100 meters.
| Hardware | |
|---|---|
| Hardware Version | 5 |
| Interface | “Data” Input Ports: 24 x RJ45 “Data+Power” Output Ports: 24 x RJ45 Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX |
| Data Rate | 10/100/1000Mbps |
| LED | System: SYS PWR x 1 (Green) PoE Failure x 1 (Red) Fan1 Failure x 1 (Red) Fan2 Failure x 1 (Red) Per PoE Port: PoE-in-use x 1 (Green) Management port x 2: 1000 (Green), 10/100 (Orange) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Power Requirements | 100-240V AC, 50/60 Hz, 8A |
| Power Consumption | 500 watts (max.) |
| Ventilation | Fan x 2 |
| Dimensions (W x D x H) | 440 x 300 x 44mm |
| Power over Ethernet | |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port DC 52V 30.8/15.4 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 440 watts@0~40 degrees C 400 watts@41~50 degrees C Auto power budget control by over temperature protection function |
| Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered | 24 |
| Number of 802.3at PDs (Class 1, 2, 3) can be powered | 14 |
| Number of 802.3at PDs (Class 0, 4) can be powered | 14 |
| Management | |
| Management Interface | Web, PLANET Smart Discovery Lite |
| PoE Management | Power limit by consumption and classification mode PoE admin mode Per port power schedule Per port power enable/disable Power feeding priority Over temperature protection Current per port usage and status Total power consumption |
| Management Feature | Setup of system/management functions Web firmware upgrade SNMP trap for alarm notification of events |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 5424: Syslog |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
