GS-5220-8P2T2S
IPv4 / IPv6 L2+/L4 Managed 8-Port 802.3at High Power PoE Gigabit Ethernet Switch + 2-Port 100/1000SFP + 2-Port 10/100/1000T RJ45 (240W PoE Budget,)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Applicazione Layer 2+ VLAN Static Routing e PoE
Lo switch GS-5220-8P2T2S integra robusti protocolli di instradamento del traffico Layer 3 IPv4/IPv6, garantendo un routing affidabile tra VLAN e segmenti di rete. I protocolli di routing possono essere applicati mediante interfaccia VLAN con fino a 32 voci di routing.
Con 8 porte Gigabit PoE High-power e interfaccia power in linea, permette di costruire facilmente una rete di alimentazione controllata centralmente, condivisa da Access Point Gigabit wireless, sistema di fonia IP o gruppo di telecamere IP mega-pixel.
Soluzione di hotspot Wi-Fi PoE con infrastruttura di rete estesa per spazi pubblici
Questo switch dispone di design non bloccante, dimensioni desktop e moduli in fibra ottica SFP, che offrono all’infrastruttura di rete una maggiore flessibilità ad un costo inferiore. Dotato di otto porte PoE 10/100/1000 BASE-T,due porte in rame, interfacce power in linea e due interfacce SFP Gigabit, permette di impostare facilmente un’autenticazione di rete su sistema di controller LAN wireless. Ad esempio, può funzionare con il controller wireless e il server RADIUS per ottenere una sicurezza completa per l’autenticazione dell’utente wireless con gli Access Point alimentati.
| Hardware Specifications | |
|---|---|

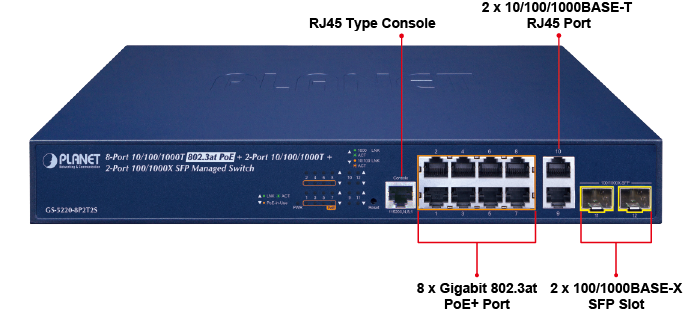

| Copper Ports | 10 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12 Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console | 1 x RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 24Gbps / non-blocking |
| Throughput | 17.76Mpps@64Bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 1392KB |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9KB |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: Fan Alert (Green), SYS (Green), PWR (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 10/100/1000Mbps LNK/ACT (Green) PoE-in-Use (Orange) 10/100/1000T RJ45 Interfaces (Port 9 to Port 10): LNK/ACT (Green) 1000Mbps (Orange) 100/1000Mbps SFP Combo Interfaces (Port 11 to Port 12): LNK/ACT (Green) 1000Mbps (Orange) |
| Power Requirements | 100~240V AC, 50/60Hz |
| Power Consumption (Full Loading) | 320 watts/1091.9 BTU (max.) |
| ESD Protection | 6KV DC |
| Dimensions (W x D x H) | 330 x 200 x 43.5 mm, 1U height |
| Weight | 2kg |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at PoE/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, max. 30.8 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 240 watts (max.) @ 25 degrees C 200 watts (max.) @ 50 degrees C |
| PoE Ability | PD @ 7 watts: 8 units PD @ 15.4 watts: 8 units PD @ 30.8 watts: 8 units |
| Layer2 Management Functions | |
| Basic Management Interfaces | Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 6 trunk groups with 8 ports per trunk |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
