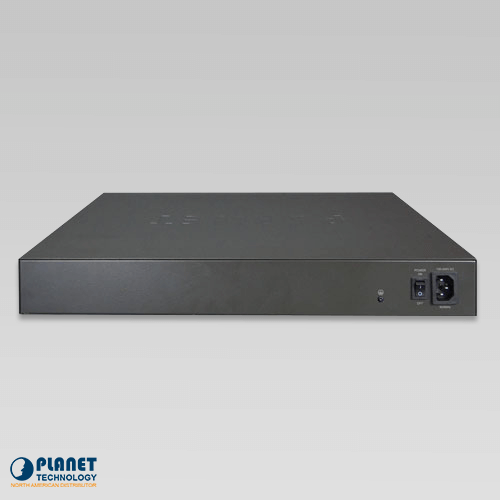

GS-5220-48P4X
L3 48-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch(400W PoE Budget, ONVIF, ERPS Ring, Cybersecurity features Hardware Layer 3, OSPFv2 and IPv4/IPv6 Static Routing)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
GS-5220-48P4X
Switch Managed L3 48-Porte 10/100/1000T 802.3at PoE+ 4-Porte 10G SFP+ (PoE Power budget: 400w)
GS-5220-48P4XR
Switch Managed L3 48-Porte 10/100/1000T 802.3at PoE+ 4-Porte 10G SFP+ con Redundant Power ((100~240V AC/36~60V DC) – (PoE Power budget: 400w)
GS-5220-48PL4X
Switch Managed L2+ 48-Porte 10/100/1000T 802.3at PoE+ 4-Porte 10G SFP+ (PoE Power budget: 600w)
GS-5220-48PL4XR
Switch Managed L2+ 48-Porte 10/100/1000T 802.3at PoE+ 4-Porte 10G SFP+ con Redundant power (100~240V AC/36~60V DC) – + (PoE Power budget: 600w)
Eccellente soluzione ad ampia banda 10Gbps per reti Core PoE
La serie di switch GS-5220-48P(L)4X(R) permette di alimentare un sistema di telecamere IP con controllo centralizzato; può funzionare con NVR a 8/16/32 canali e software di sorveglianza per eseguire un monitoraggio completo della sicurezza.
Ad esempio, lo switch PoE può combinarsi con un NVR a 32 canali e un NVR a 8 canali; ossia, ciascuna delle sue porte PoE può collegarsi ad una determinata telecamera IP PoE, per cui l’amministratore di rete può gestire, in modo efficiente, il sistema di sorveglianza da un’unica posizione. Con le quattro porte SFP + integrate, la serie di switch fornisce l’uplink alla rete backbone mediante i moduli Ethernet SFP+ 10G SR/LR. Inoltre, migliora ulteriormente l’efficienza della rete e protegge i client di rete con le funzionalità di sicurezza e QoS integrate.
Applicazioni Layer 3 VLAN Static Routing e PoE
Conformi allo standard IEEE 802.3at PoE+, questi switch offrono fino a 36 watt di potenza in uscita per porta e un budget PoE fino a 600 watt, in grado di distribuire fino a 48 dispositivi PD PoE; integrano robusti protocolli di instradamento del traffico Layer 3 IPv4/IPv6, garantendo un routing affidabile tra VLAN e segmenti di rete. I protocolli di routing possono essere applicati mediante interfaccia VLAN con fino a 128 routing entries.
| Hardware Specifications | |
|---|---|
| Copper Ports | 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (Port-49 to Port-52) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 176Gbps/non-blocking |
| Throughput | 130Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | GS-5220-48P4X: 4950g GS-5220-48P4XR: 4955g GS-5220-48LP4X: 4970g GS-5220-48PL4XR: 4975g |
| LED | System: SYS (Green) AC/PWR (Green) Ring (Green) DC (Green) (GS-5220-48P4XR and GS-5220-48PL4XR Only) Fan1/2/3 Alert (Red) PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-48): PoE-in-use (Orange) Ethernet Interfaces (Port-1 to Port-48): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 1/10G SFP+ Interfaces (Port-49 to Port-52): 1G (Green), 10G (Orange) |
| Power Consumption | GS-5220-48P4X: Max. 461 watts/1582 BTU GS-5220-48P4XR: AC: Max. 461 watts/11582 BTU DC: Max. 36.6 watts/124.88 BTU GS-5220-48PL4X: Max. 680 watts/2333 BTU GS-5220-48PL4XR: AC: Max. 680 watts/2333 BTU DC: Max. 36.6 watts/124.88 BTU |
| Power Requirements – AC | GS-5220-48P4X: AC 100~240V, 50/60Hz, 7A GS-5220-48P4XR: AC 100~240V, 50/60Hz, 7A GS-5220-48PL4X: AC 100~240V, 50/60Hz, 8A GS-5220-48PL4XR: AC 100~240V, 50/60Hz, 8A |
| Power Requirements – DC | GS-5220-48P4XR: DC 36~60V, 2A GS-5220-48PL4XR: DC 36~60V, 2A |
| ESD Protection | 6KV DC |
| Fan | 3 smart fans |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 36 watts (max.) |
| Power Pin Assignment | End-span: 1/2(+), 3/6(-) |
| PoE Power Budget | GS-5220-48P4X: 400 watts (max.) GS-5220-48P4XR: 400 watts (max.) GS-5220-48LP4X: 600 watts (max.) GS-5220-48PL4XR: 600 watts (max.) |
| PoE Ability PD @ 7 watts | GS-5220-48P4X: 48 units GS-5220-48P4XR: 48 units GS-5220-48LP4X: 48 units GS-5220-48PL4XR: 48 units |
| PoE Ability PD @ 15 watts | GS-5220-48P4X: 26 units GS-5220-48P4XR: 26 units GS-5220-48LP4X: 40 units GS-5220-48PL4XR: 40 units |
| PoE Ability PD @ 30 watts | GS-5220-48P4X: 13 units GS-5220-48P4XR: 13 units GS-5220-48LP4X: 20 units GS-5220-48PL4XR: 20 units |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 26 groups with 4 port per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/ToS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | Routing Protocols IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSH, TLS, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
