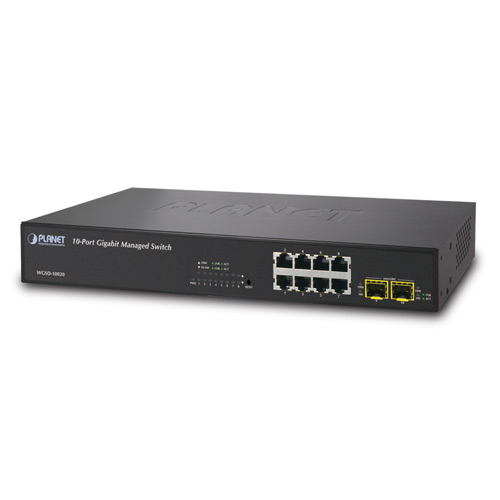

WGSD-10020

L2+ 8-Port 10/100/1000T + 2 100/1000X SFP Managed Switch

Descrizione

Department / Edge Security and QoS Switches for SMBs
The WGSD-10020 connects up to 10 high-speed workstations in the Ethernet environment, in which its two SFP mini-GBIC interfaces uplink to a department backbone. Moreover, the Switch provides 20 Gigabit per second switch fabric and high bandwidth for backbone connection. The WGSD-10020 improves the network efficiency and protects the network clients with the following powerful features:
• IPv6 / IPv4 management
• Layer 2 to Layer 4 security
• QoS
• 802.1x Port-based and MAC-based network access authentication security
• Multicast IGMP/MLD Snooping

The advanced functionality of the WGSD-10020 eliminates traditional issues associated with the use of Ethernet. Users can be separated with advanced VLAN functionality to enhance security. It makes the WGSD-10020 one of the best and most cost-effective switch solutions for SMBs.

FTTX / MAN Application Switch
The WGSD-10020 applies the double tag VLAN (Q-in-Q) technology to providing low cost and easy operation for service providers carrying traffic for multiple customers across their networks. It features SNMPv3 and RMON Groups security functions. The SNMPv3 security structure consists of security models and helps to isolate each model with its own security levels to enhance the security protections in the FTTX and MAN networks. With its two built-in dual-speed SFP slots, the deployment distance of the WGSD-10020 can be extended up to 120 kilometers, which provides a high-performance edge service for FTTx solutions. To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers’ choices. For security and various applications, the 10 Gigabit ports of the WGSD-10020 can be configured with VLAN settings and connect to different units, offices, floors, houses and departments.

Hardware Specifications
Copper Ports 8 10/ 100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Supports 100/1000Mbps dual mode and DDM
Console Port 1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps / non-blocking
Switch Throughput 14.88Mpps@64Bytes
Address Table 8K entries, automatic source address learning and ageing
Shared Data Buffer 1392 kilobytes
ESD Protection 6KV
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 seconds: System reboot
> 5 seconds: Factory Default
Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U high
Weight 1.4kg
LED Power
10/100/1000 Link / Act per RJ45 port,
100/1000 Link / Act per SFP port,
Power Consumption Max. 10.3 watts / 35.13 BTU
Power Requirements 100~240V AC, 50/60Hz
Layer 2 function
Port Configuration Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk
5 groups of 5-Port trunk supported
Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, Strict priority and WRR
8-Level priority for switching
– Port Number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Access Control List IP-based ACL / MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software Static Routing
IPv6 software Static Routing
Management
Basic Management Interfaces Console / Telnet / Web browser / SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC-1213 MIB-II
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2863 IF-MIB
RFC-2933 IGMP-STD-MIB
RFC-3411 SNMP-Frameworks-MIB
RFC-4292 IP Forward MIB
RFC-4293 IP MIB
RFC-4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
