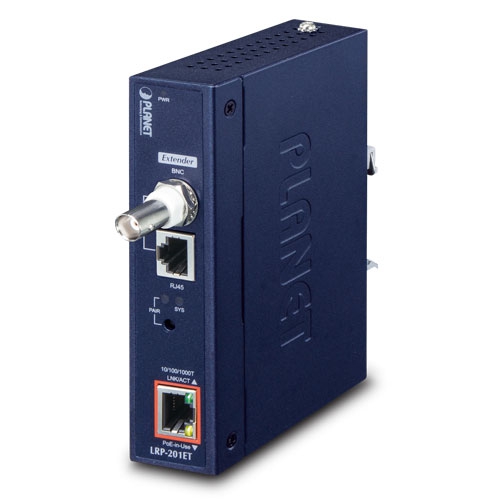

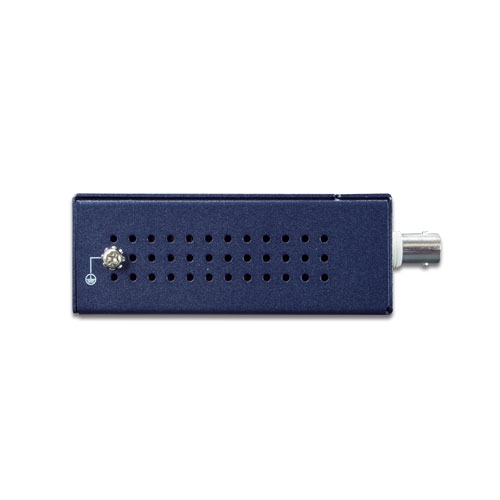

LRP-201ET
Industrial 1-Port 10/100/1000T Ultra PoE PSE + 1-Port Coax/UTP Long Reach PoE Extender, -20 to 70 Degree C
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Working in pair with PLANET LRP-201HT Long Reach PoE Injector, powered by either the external DC power adapter or PoE++ Ethernet switch, the LRP-201ET’s 802.3at/bt standard PoE output goes to a PoE PD. The LRP-201-KIT, made up of the LRP-201HT and LRP-201ET, can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.
The LRP-201ET can function in four different kinds of combinations:
Type 1 – LRP-201HT with PoE power input connects to LRP-201ET via coaxial cable
The LRP injector is powered via IEEE 802.3at/bt PoE and connected to LRP-201ET via coaxial cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.
| Functions | LRP Injector | LRP Extender |
| LRP-201HT | LRP-201ET | |
| Power Input | RJ45 with 802.3at/bt PoE input | BNC with DC power over coaxial input |
| Power Output | BNC with DC power over coaxial output | RJ45 with 802.3at/bt PoE output |
Type 2 – LRP-201HT with 48~54V power adapter connects to LRP-201ET via coaxial cable
The LRP injector is powered via the external power adapter and connected to LRP-201ET via coaxial cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.
| Functions | LRP Injector | LRP Extender |
| LRP-201HT | LRP-201ET | |
| Power Input | Power adapter with 48~54V DC in | BNC with DC power over coaxial input |
| Power Output | BNC with DC power over coaxial output | RJ45 with 802.3at/bt PoE output |
Type 3 – LRP-201HT with PoE power input connects to LRP-201ET via UTP cable
The LRP injector is powered via IEEE 802.3at/bt PoE and connected to LRP-201ET via UTP cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.
| Functions | LRP Injector | LRP Extender |
| LRP-201HT | LRP-201ET | |
| Power Input | RJ45 with 802.3at/bt PoE input | UTP with DC power over UTP input |
| Power Output | UTP with DC power over UTP output | RJ45 with 802.3at/bt PoE output |
Type 4 – LRP-201HT with 48~54V power adapter connects to LRP-201ET via UTP cable
The LRP injector is powered via the external power adapter and connected to LRP-201ET via UTP cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.
| Functions | LRP Injector | LRP Extender |
| LRP-201HT | LRP-201ET | |
| Power Input | Power adapter with 48~54V DC in | UTP with DC power over UTP input |
| Power Output | UTP with DC power over UTP output | RJ45 with 802.3at/bt PoE output |
| Hardware Specifications | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ethernet Interface |
Copper 10/100/1000BASE-T RJ45 Auto-negotiation/ Auto-MDI/MDI-X Power over Ethernet Standard IEEE 802.3at/bt PoE PSE PoE Output 56V DC, 1.2A max. PoE Budget Up to 60 watts PoE Mode Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) Data Rate 100/100/1000Mbps Cabling Cat. 5e or above Maximum Distance 100 meters Maximum Frame sizes 1522bytes |
||||||||||||||||||||
| Long Reach PoE Interface* |
Connectivity 1 x RJ45 female connector Long Reach PoE over UTP PD 1 x BNC female connector Long Reach PoE over coaxial PD Power Input 40~54V DC Power Pin Assignment Coaxial – BNC center pole: DC+ – BNC shield: DC- UTP – RJ45 Pins 1, 3, 5, 7: VCC+ – RJ45 Pins 2, 4, 6, 8: VCC- Cabling Coaxial – Coaxial cable: 75 ohm – RG-6/U cable, less than 12Ω/1000 ft. – RG-59/U cable, less than 30Ω/1000 ft. UTP – Cat. 5e/6 UTP cable – EIA/TIA-568 100-ohm STP Maximum Distance Coaxial – Max. 200m with PoE++ output (656ft.) – Max. 400m with PoE+ output (1312ft.) – Max. 600m with PoE output (1,968ft.) UTP – Max. 100m with PoE++ output (328ft.) – Max. 200m with PoE+ output (656ft.) – Max. 300m with PoE output (984ft.) – Max. 400m with PoE output (1,312ft.) Long Reach Ethernet Standard ITU-T G.hn Modulation Type OFDM Security 128-bit AES encryption Frequency Band 1 ~ 100 MHz Multiple nodes Supports up to 2 LRP extenders within 0.6km LRP Compatibility LRP-201HT- 1-Port LRP Injector |
||||||||||||||||||||
| LRP Coaxial Performance |
|
||||||||||||||||||||
| LRP UTP Performance |
|
||||||||||||||||||||

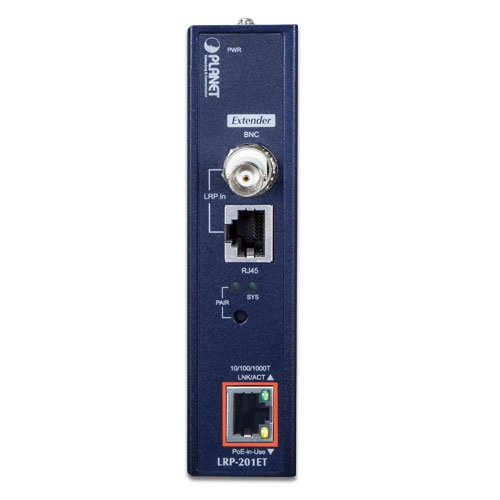

| LED Indicators | – PWR – SYS – PAIR – PoE-in-Use – LNK/ACT |
||||||||||||||||||||
| ESD Protection | 6KV DC | ||||||||||||||||||||
| PAIR Button | Press for 3 sec to join LRP-201HT | ||||||||||||||||||||
| Reset Button | Press over 10 sec to return to factory default | ||||||||||||||||||||
| Enclosure | IP30 slim type metal case | ||||||||||||||||||||
| Installation | DIN-rail kit or wall-mount ear | ||||||||||||||||||||
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm | ||||||||||||||||||||
| Weight | 510g | ||||||||||||||||||||
| Power Requirements | – BNC Power over Coaxial Input: 40~54V DC, 1.8A max. – RJ45 Power over Ethernet Input: 40~54V DC, 1.8A max. |
||||||||||||||||||||
| Standards Conformance | |||||||||||||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 3 IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
||||||||||||||||||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||
| Environment | |||||||||||||||||||||
| Temperature | Operating: -20~70 degrees C Storage: -30~75 degrees C |
||||||||||||||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||||||||||||||
| Standard Accessories | |||||||||||||||||||||
| Package Contents | – LRP-201ET – User’s Manual – Wall-mount Kit – RJ45 Dust Cap x 2 – Warning Sticker |
||||||||||||||||||||
| Note | *Please do not connect any Ethernet device to LRP IN Port of the LRP-201ET; otherwise, it will damage the Ethernet device. | ||||||||||||||||||||
