LRP-201-KIT

Industrial 1-Port Long Reach Gigabit Ultra PoE over Coax/UTP Extender Kit (LRP-201HT + LRP-201ET), -20 to 70 Degree C, up to 600m

Descrizione

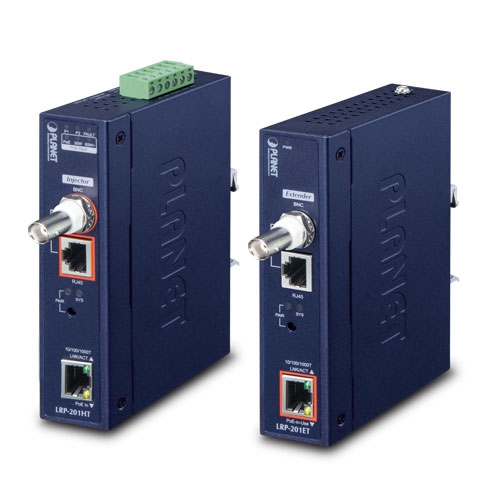

The LRP-201-KIT includes two products:  The LRP-201HT, a coaxial/UTP Long Reach PoE injector (LRP injector), and the LRP-201ET, a coaxial/UTP Long Reach PoE extender (LRP extender). Working in pair, the LRP-201HT can be powered by either external DC power adapter or PoE++ Ethernet switch, and from there, the LRP-201ET’s ultra PoE output goes to a PoE PD. The LRP-201-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.



The LRP-201-KIT can function in four different kinds of combinations:

Type 1 –LRP-201HT with PoE power input connects to LRP-201ET via coaxial cable

The LRP injector is powered via IEEE 802.3at/bt PoE and connected to LRP-201ET via coaxial cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.



Type 2 –LRP-201HT with 48~54V power adapter connects to LRP-201ET via coaxial cable

The LRP injector is powered via the external power adapter and connected to LRP-201ET via coaxial cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.



Type 3 – LRP-201HT with PoE power input connects to LRP-201ET via UTP cable

The LRP injector is powered via IEEE 802.3at/bt PoE and connected to LRP-201ET via UTP cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.





Type 4 – LRP-201HT with 48~54V power adapter connects to LRP-201ET via UTP cable

The LRP injector is powered via the external power adapter and connected to LRP-201ET via UTP cable. The IEEE 802.3at/bt compliant PoE PD will automatically be powered by the LRP extender via UTP.

LRP-201-KIT
Model
LRP-201HT LRP-201ET
Hardware Specifications

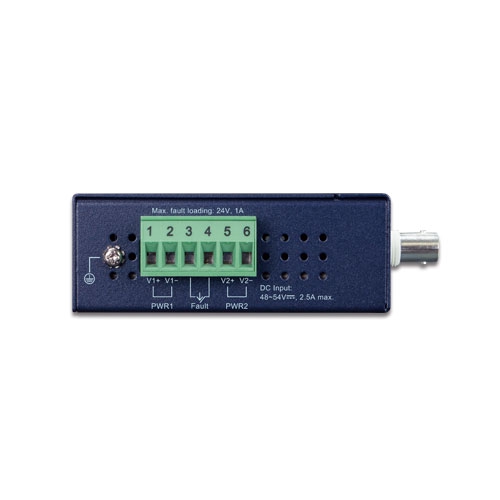

Input Power Terminal Block
Redundant power: 48~54V DC
Fault alarm: 1A@24V DC
Ethernet Interface
Copper
10/100/1000BASE-T RJ45
Auto-negotiation, Auto-MDI/MDI-X
Power over Ethernet Standard
IEEE 802.3at/bt PoE PD
PoE Input
Supports both Mid-span and End-span PSE
Input Range: 48~54V DC
PoE Output

PoE Budget

PoE Mode

Data Rate
100/100/1000Mbps
Cabling
Cat. 5e or above
Maximum Distance
100 meters
Maximum Frame sizes
1522bytes
Copper
10/100/1000BASE-T RJ45
Auto-negotiation/ Auto-MDI/MDI-X
Power over Ethernet Standard
IEEE 802.3at/bt PoE PSE
PoE Input

PoE Output
56V DC, 1.2A max.
PoE Budget
Up to 60 watts
PoE Mode
Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
Data Rate
100/100/1000Mbps
Cabling
Cat. 5e or above
Maximum Distance
100 meters
Maximum Frame sizes
1522bytes
Long Reach PoE Interface*
Connectivity
1 x RJ45 female connector
Long Reach PoE over UTP PSE
1 x BNC female connector
Long Reach PoE over coaxial PSE
Power Input

Power Output
44~54V DC
Power Pin Assignment
Coaxial
– BNC center pole: DC+
– BNC shield: DC-
UTP
– RJ45 Pins 1, 3, 5, 7: VCC+
– RJ45 Pins 2, 4, 6, 8: VCC-
Cabling
Coaxial
– Coaxial cable: 75 ohm
– RG-6/U cable, less than 12Ω/1000 ft.
– RG-59/U cable, less than 30Ω/1000 ft.
UTP
– Cat. 5e/6 UTP cable
– EIA/TIA-568 100-ohm STP
Maximum Distance
Coaxial
– Max. 200m with PoE++ output (656ft.)
– Max. 400m with PoE+ output (1312ft.)
– Max. 600m with PoE output (1,968ft.)
UTP
– Max. 100m with PoE++ output (328ft.)
– Max. 200m with PoE+ output (656ft.)
– Max. 300m with PoE output (984ft.)
– Max. 400m with PoE output (1,312ft.)
Long Reach Ethernet Standard
ITU-T G.hn
Modulation Type
OFDM
Security
128-bit AES encryption
Frequency Band
1 ~ 100 MHz
Multiple nodes
Supports up to 4 LRP extenders within 0.6km
LRP Compatibility

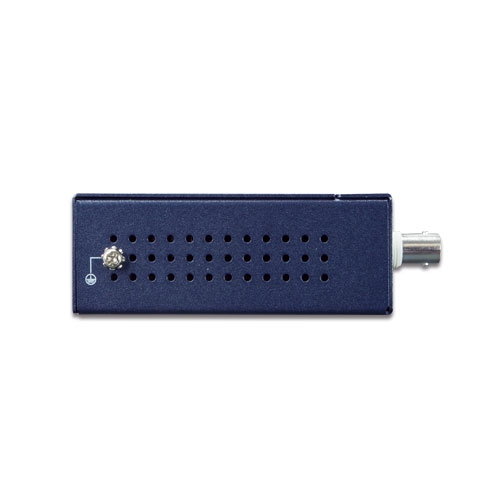

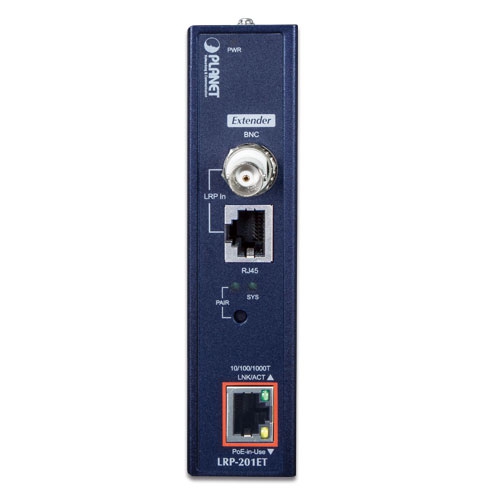

LRP-201ET – 1-Port LRP Extender
Connectivity
1 x RJ45 female connector
Long Reach PoE over UTP PD
1 x BNC female connector
Long Reach PoE over coaxial PD
Power Input
40~54V DC
Power Output

Power Pin Assignment
Coaxial
– BNC center pole: DC+
– BNC shield: DC-
UTP
– RJ45 Pins 1, 3, 5, 7: VCC+
– RJ45 Pins 2, 4, 6, 8: VCC-
Cabling
Coaxial
– Coaxial cable: 75 ohm
– RG-6/U cable, less than 12Ω/1000 ft.
– RG-59/U cable, less than 30Ω/1000 ft.
UTP
– Cat. 5e/6 UTP cable
– EIA/TIA-568 100-ohm STP
Maximum Distance
Coaxial
– Max. 200m with PoE++ output (656ft.)
– Max. 400m with PoE+ output (1312ft.)
– Max. 600m with PoE output (1,968ft.)
UTP
– Max. 100m with PoE++ output (328ft.)
– Max. 200m with PoE+ output (656ft.)
– Max. 300m with PoE output (984ft.)
– Max. 400m with PoE output (1,312ft.)
Long Reach Ethernet Standard
ITU-T G.hn
Modulation Type
OFDM
Security
128-bit AES encryption
Frequency Band
1 ~ 100 MHz
Multiple nodes
Supports up to 4 LRP extenders within 0.6km
LRP Compatibility

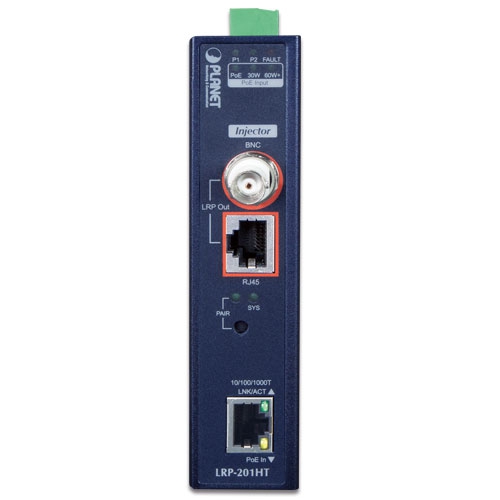

LRP-201HT – 1-Port LRP Injector
LRP Coaxial Performance
Distance Data Rate
(Upload / Download)
48V DC Input 60W PoE++ Input
200m 477/471 Mbps 41W 34W
400m 239/234 Mbps 16W 22W
600m 107/98 Mbps 6W 8W
LRP UTP Performance
Distance Data Rate
(Upload / Download)
48V DC Input 60W PoE++ Input
100m 407/415Mbps 59W 40W
200m 268/270 Mbps 55W 36W
300m 134/146 Mbps 34W 28W
400m 75/83 Mbps 24W 23W
LED Indicators
– P1
– P2
– FAULT
– PoE Input
– SYS
– PAIR
– PoE IN
– LNK/ACT
– PWR
– SYS
– PAIR
– PoE-in-Use
– LNK/ACT
ESD Protection 6KV DC
PAIR Button
Press for 3 sec to join LRP-201ET Press for 3 sec to join LRP-201HT
Reset Button Press over 10 sec to return to factory default
Enclosure IP30 slim type metal case
Installation DIN-rail kit or wall-mount ear
Dimensions (W x D x H) 135 x 87.8 x 32mm
Weight
520g 510g
Power Requirements
– RJ45 PoE Input: 802.3af/at/bt 48~54V DC, 2.5A max.
– DC Input: 48~54V DC, 2.5A max.
– BNC Power over Coaxial Input: 40~54V DC, 1.8A max.
– RJ45 Power over Ethernet Input: 40~54V DC, 1.8A max.
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet Type 3
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -20~70 degrees C
Storage: -30~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Standard Accessories
Package Contents – LRP-201-KIT
– User’s Manual
– Wall-mount Kit
– RJ45 Dust Cap x 2
– Warning Sticker
Note *1-1 Please do not connect any Ethernet device to LRP OUT Port of the LRP-201HT; otherwise, it will damage the Ethernet device.
*1-2 Please do not connect any Ethernet device to LRP IN Port of the LRP-201ET; otherwise, it will damage the Ethernet device.
