GT-905A
Web/SNMP Manageable 10/100/1000Base-T to MiniGBIC (SFP) Gigabit Converter
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Fiber-Optic Networking for ISPs, Enterprises, and Homes

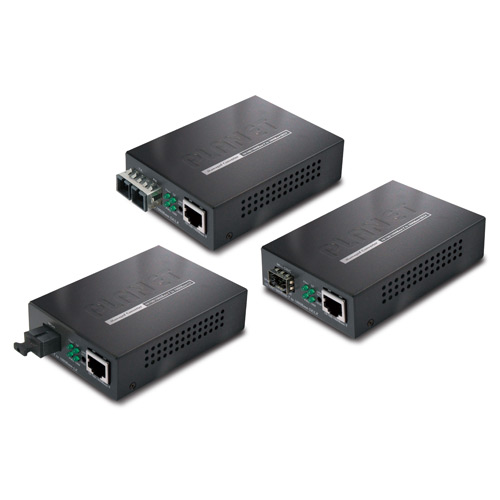

With high performance of data transmission and easy installation, the GT-90x series can build an ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for small office network environment from enterprises. The Web Management interface provided at the GT-90x series helps network administrators to easily monitor and set up the converter, the transmission speed and duplex through web browsers.
| Hardware Specifications | |
|---|---|
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX |
| Ports | 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GT-902 / GT-902S: SC GT-905A: SFP GT-906A15 / GT-906B15 / GT-906A60 / GT-906A60: WDM |
| Optic Wavelength | GT-902: 850nm GT-902S: 1310nm GT-905A: N/A GT-906A15: TX:1310nm / RX:1550nm GT-906B15: TX:1550nm / RX:1310nm GT-906A60: TX:1310nm / RX:1550nm GT-906B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GT-902: -4 dBm GT-902S: -3 dBm GT-905A: N/A GT-906A15: -3 dBm GT-906B15: +5 dBm GT-906A60: -3 dBm GT-906B60: +4 dBm |
| Launch Power(dBm) Min. | GT-902: -9.5 dBm GT-902S: -9.5dBm GT-905A: N/A GT-906A15: -9 dBm GT-906B15: 0 dBm GT-906A60: -9 dBm GT-906B60: -1 dBm |
| Receive Sensitivity | GT-902: -13.5 dBm GT-902S: -14.4 dBm GT-905A: N/A GT-906A15: -21 dBm GT-906B15: -25 dBm GT-906A60: -21 dBm GT-906B60: -25 dBm |
| Maximum Input power | GT-902: -18 dBm GT-902S: -20 dBm GT-905A: N/A GT-906A15: -3 dBm GT-906B15: -3 dBm GT-906A60: -2 dBm GT-906B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100Base-TX: 2-pair UTP Cat. 5, up to 100 m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | • 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. • 9/125μm single-mode cable, provides long distance for 10/15/20/30/40/50/60/70/120km (very on fiber transceiver or SFP module) |
| LED Indicator | • PWR, • TP LINK/ACT, 1000 • Fiber LINK/ACT |
| Power Consumption | 4 watts/ 13 BTU (maximum) |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 93 x 70 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
