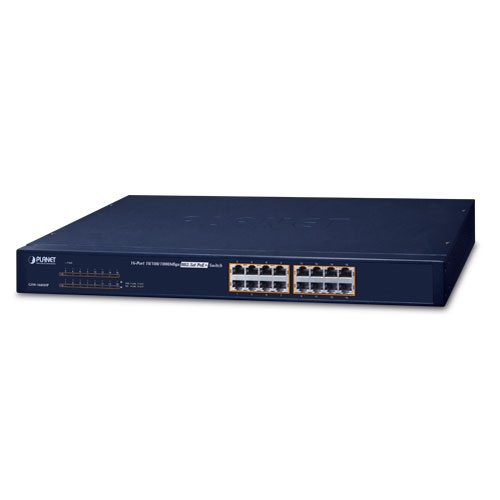

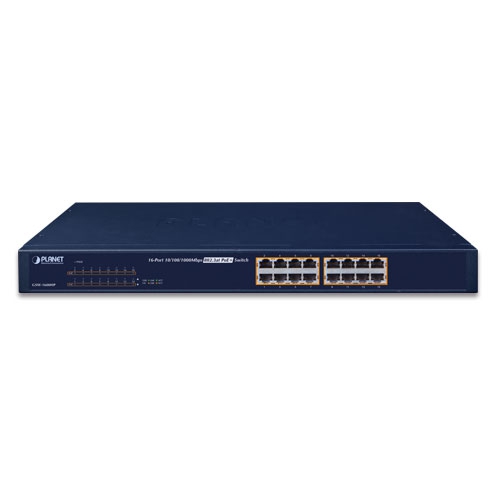

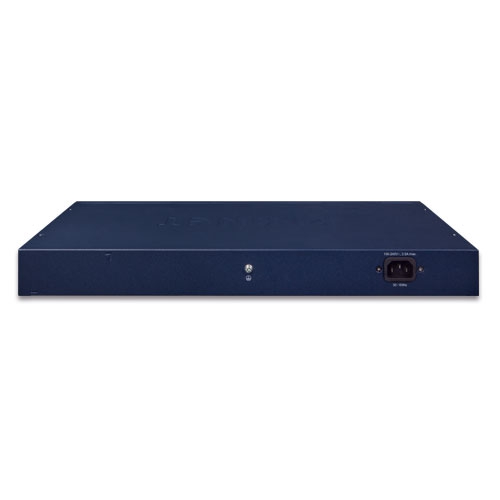

GSW-1600HP
19″ 16-Port 10/100/1000 unmanaged Gigabit Ethernet 802.3at POE+ Switch (220W)
- Applicazioni
- SPECIFICHE
- DOWNLOAD
Descrizione
Department / Workgroup PoE Network
Providing 16 PoE in-line power interfaces, the GSW-1600HP can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power-socket limitation, the GSW-1600HP makes the installation of cameras easier and more efficient.
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| 10/100/1000BASE-T Copper Ports | 16 auto-MDI/MDI-X ports |
| 802.3af / 802.3at PoE Injector Port | 16 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 32Gbps/non-blocking |
| Switch Throughput@64 bytes | 23.8Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED |
System: Power (Green) 10/100/1000T RJ45 Interfaces: 1000 LNK / ACT (Green) 10/100 LNK/ACT (Orange) PoE (Orange) |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.65kg |
| Power Requirements | AC 100~240V, 50/60Hz, 3.5A max. |
| Power Consumption/Dissipation | Max. 260 watts/885 BTU |
| Thermal Fan | 2 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 220 watts |
| Number of PDs, 7 watts | 16 |
| Number of PDs, 15.4 watts | 14 |
| Number of PDs, 30 watts | 7 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy-Efficient Ethernet |
| Environment | |
| Operating | Temperature:0 ~ 50 degrees C Relative Humidity:5 ~ 95% (non-condensing) |
| Storage | Temperature:-10 ~ 70 degrees C Relative Humidity:5 ~ 95% (non-condensing) |
