GS-5220-16UP2XVR

GS-5220-16UP2XVR

L3 ,16-Port 10/100/1000T 75W Ultra PoE+ 2-Port 10G SFP+ Managed Switch W/Color LCD Touch Screen, ERPS Ring, Cybersecurity features Hardware L3 OSPFv2, IPv4/IPv6 Static Routing, W/48V Redundant Power Optional, 400W PoE Budget,ONVIF

Descrizione

GS-5220-16UP2XV

Switch Managed L3 con16-Porte 10/100/1000T Ultra PoE + 2-Porte 10G SFP+ con LCD Touch Screen – PoE Power Budget: 400W

GS-5220-16UP2XVR

Switch Managed L3 16-Porte 10/100/1000T Ultra PoE + 2-Porte 10G SFP+ con LCD Touch Screen e Redundant Power (100~240V AC / 36~60V DC) – PoE Power Budget: 400W

Applicazione Layer 3 VLAN Static Routing e PoE

Questa serie di switch offre fino a 75 watt di potenza in uscita per porta e un budget PoE fino a 400 watt, in grado di distribuire fino a 16 dispositivi alimentati PoE; integra robusti protocolli di instradamento del traffico Layer 3 IPv4 / IPv6, garantendo un routing affidabile tra VLAN e segmenti di rete. I protocolli di routing possono essere applicati mediante interfaccia VLAN con fino a 128 voci di routing.



Anello ridondante ottimale per un ripristino più rapido della rete gestita

Lo switch GS-5220-16UP2XV(R) supporta la tecnologia ad anello ridondante e dispone di una forte e rapida capacità di auto-recupero per prevenire interruzioni del servizio e intrusioni esterne. Incorpora la tecnologia avanzata ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) e il protocollo Spanning Tree (802.1w RSTP) nella rete del cliente, migliorando l’affidabilità del sistema e il tempo di attività in ambienti critici. In una determinata rete ad anello semplice, il tempo di recupero del collegamento dati può essere inferiore a 50ms.

Hardware Specifications
Hardware Version 2

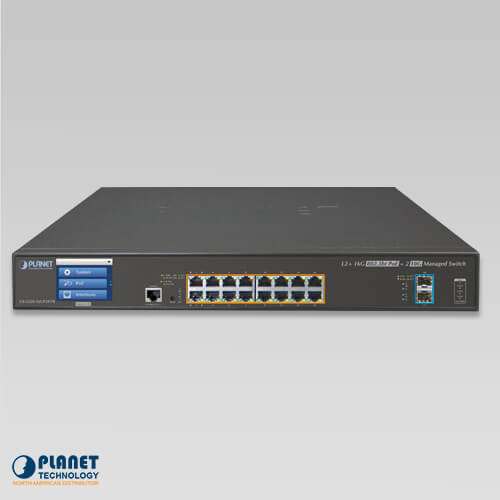

SFP+ Slots 2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Copper Ports 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 72Gbps/non-blocking
Throughput 53.57Mpps@64Bytes
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32M bits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 440 x 300 x 56 mm, 1.25U height
Weight GS-5220-16UP2XV: 4558g
GS-5220-16UP2XVR: 4658g
LED System:
SYS (Green)
AC/PWR (Green)
DC (Green) (GS-5220-16UP2XVR Only)
Ring (Green)
Fan1/2/3 Alert (Red)
PoE PWR Alert (Red)
PoE Ethernet Interfaces (Port-1 to Port-16):
bt PoE (Green) , af/at PoE (Orange)
Ethernet Interfaces (Port-1 to Port-16):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
1/10G SFP+ Interfaces (Port-17 to Port-18):
1G (Green), 10G (Orange)
Power Consumption GS-5220-16UP2XV:
Max. 468 watts/1569.88 BTUGS-5220-16UP2XVR:
AC: Max. 468 watts/1569.88 BTU
DC: Max. 36.6 watts/124.88 BTU

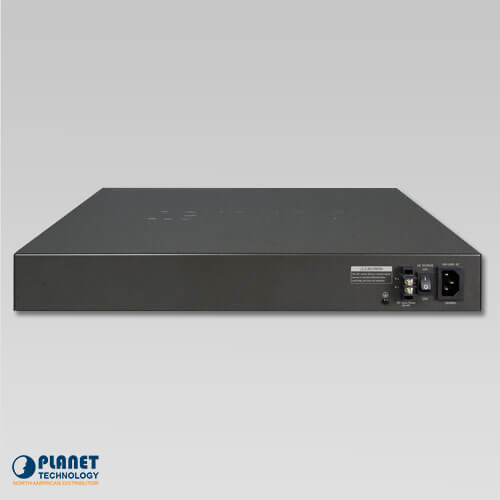

Power Requirements – AC AC 100~240V, 50/60Hz, 4.3A
Power Requirements – DC GS-5220-16UP2XVR: DC 36~60V, 2A
ESD Protection 6KV DC
Fan 3 smart fans
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at/802.3bt Ultra PoE PSE
PoE Power Supply Type End-span/Mid-span/UPoE
PoE Power Output Per port 53V DC, 75 watts (max.)
Power Pin Assignment End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget 400 watts (max.)
PoE Ability PD @ 15 watts 16 units
PoE Ability PD @ 30 watts 13 units
PoE Ability PD @ 60 watts 6 units
Layer 2 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
9 groups with 2 port per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS Traffic classification based, strict priority and WRR
8-level priority for switching:
– Port number
– 802.1p priority
– 802.1Q VLAN tagging
– DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 OSPFv2
IPv4 hardware static routing
IPv6 hardware static routing
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touch screen
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
